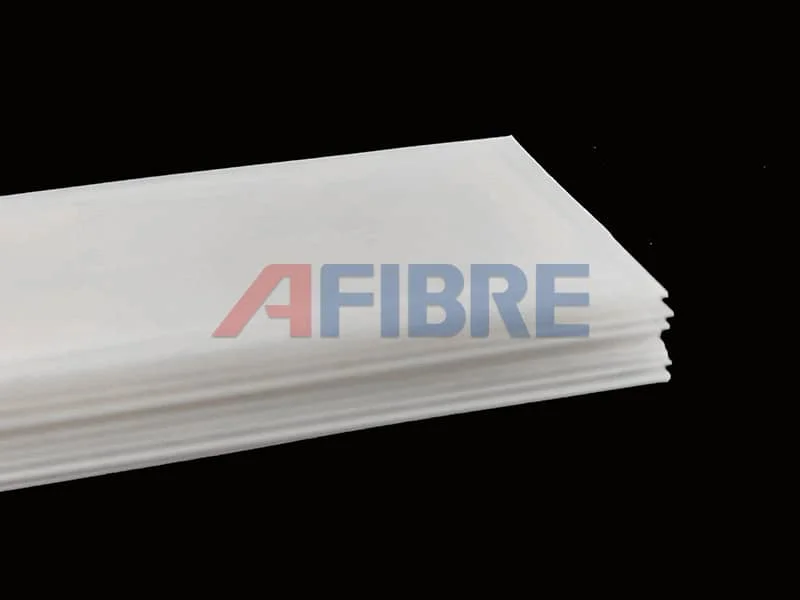

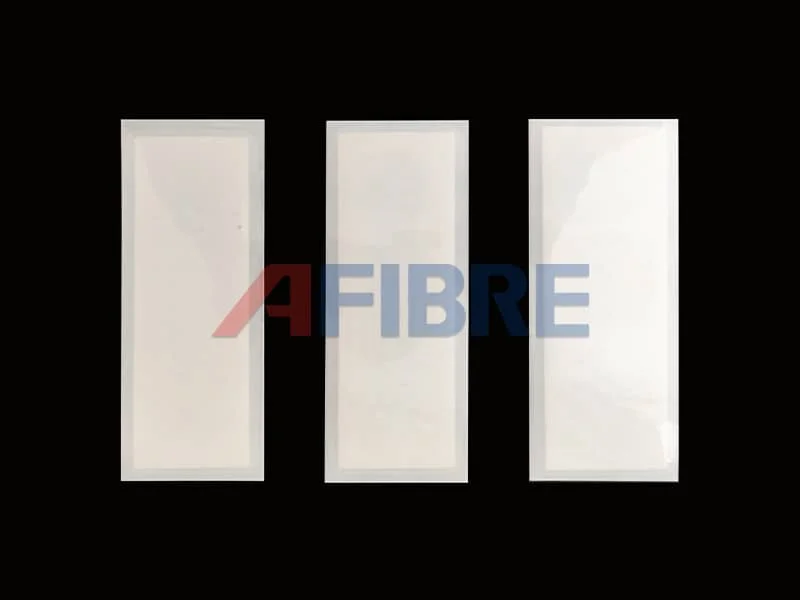

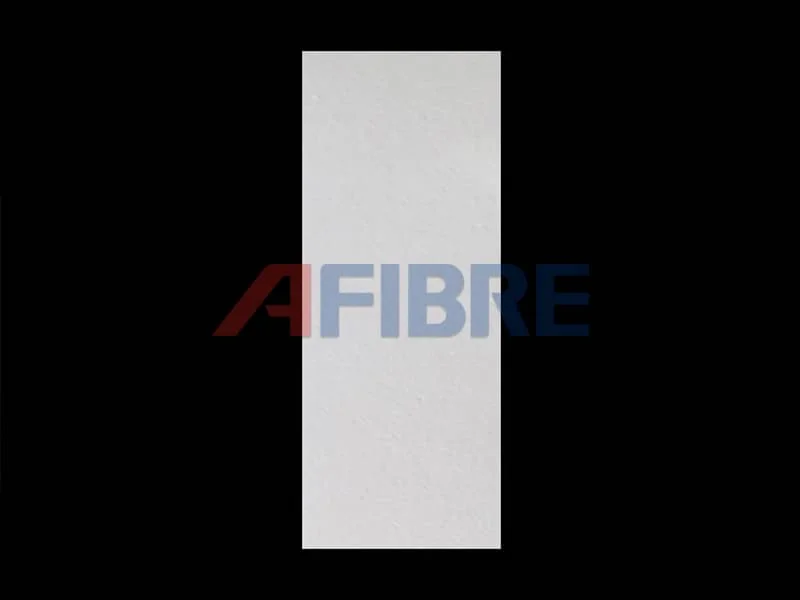

Thermal Protected Paper TPP-A1

TPP-A1 alumina fiber thermal protected mat is made of FP series fiber paper as the core material and encapsulated with thermoplastic film, which improves its performance degradation caused by air humidity. It can work stably for a long time in a 100 ℃ environment, providing long-term safety protection for the equipment.

Get a Quote Contact us

Characteritics

The working temperature range of the core material is large, and the temperature resistance performance ranges from -200 ℃ to 1300 ℃.
The long-term use temperature of the plastic sealing film is 100 ℃, and it can reach 200 ℃ in the short term.
It has good insulation performance, waterproofing, and electrical insulation.
Low smoke, non-toxic, non powdery, slag free, and good flame retardant, in compliance with the EU ROHS directive.

Performance Index Table

Appearance	Flexible sheet material,customizable colors
Thickness	1mm、1.5mm、3.0mm、5.0mm，Customizable
Width	≤1.20m，Customizable
Thermal conductivity	≤0.04(w/m·k)	GB/T 10297-2015
Bulk density	100-160kg/m³	GB/T 5480-2008
Hydrophobic	99.50%	GB/T 10299-2011
Flame retardant grade	Satisfy	UL94-V0
Compressive strength	0.9MPa@75%	GB/T 14380-2014
Compression resilience ratio	≥85%	GB/T 20671.2-2006
Vibration mass loss	0%	GB/T 34336-2017
Tensile strength	≥400kPa	GB/T 17911-2018
ELV	Meet limit requirements	EU ELV Directive 2000/53/EC
Packaging method	Plastic film packaging or customization

Product APPLICATION

Automotive Industry Field

The mat of the three-way catalyst is widely used in vehicle exhaust emission systems to protect and seal the honeycomb ceramic carrier. The Dongheng three-way catalytic converter liner is applied in gasoline vehicles for TWC (three-way catalytic converter) and GPF (gasoline particulate trap); Applied in diesel vehicles for DOC (diesel oxidation catalyst), DPF (diesel particulate trap), and SCR (selective catalytic reduction).

New Energy

Alumina fiber insulation mat is made of FP series fiber paper as the core material and encapsulated with thermoplastic film. It has excellent thermal insulation and buffering performance, mainly used for thermal protection between power lithium battery cells, which can effectively prevent battery cell thermal runaway and provide long-term safety guarantee for power batteries. It can also be applied in related fields such as energy storage.
