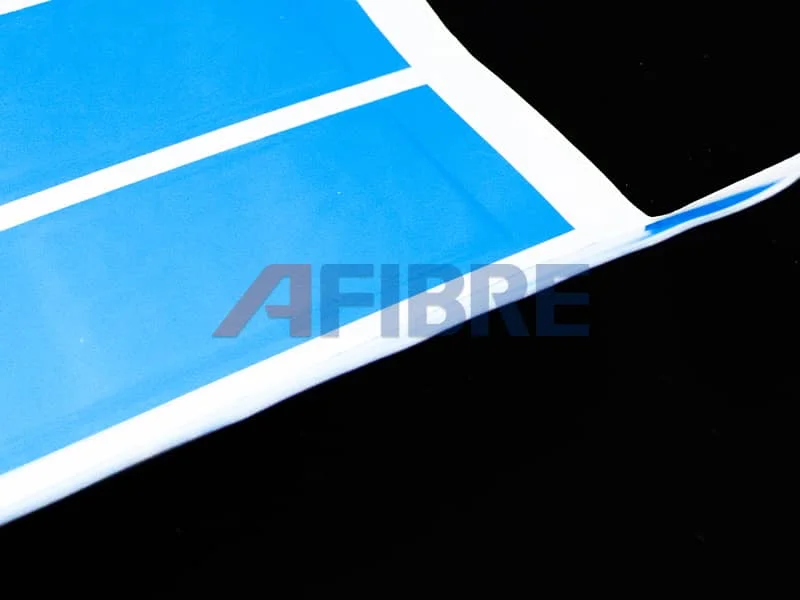

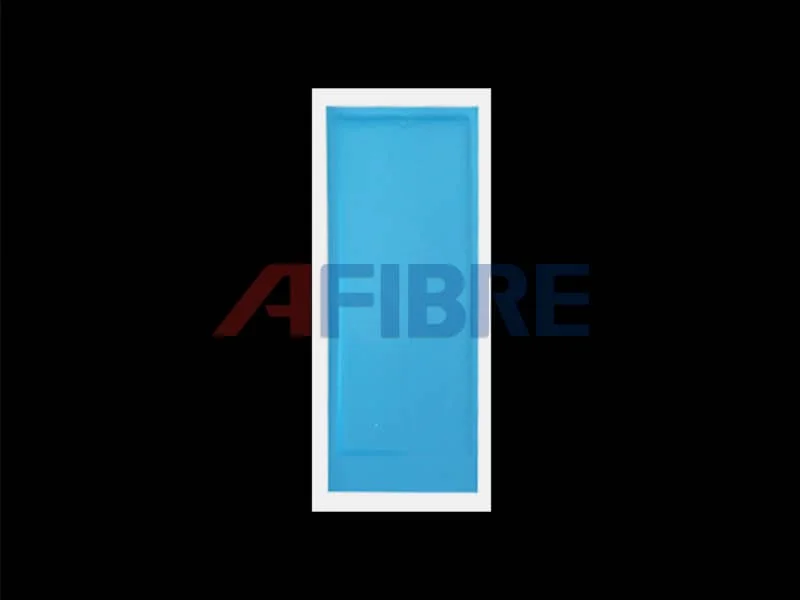

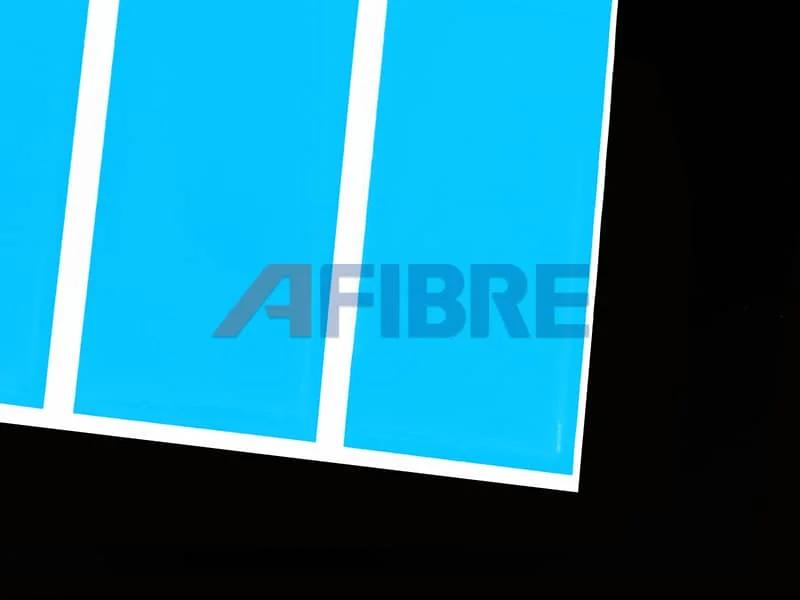

TPP-B alumina fiber thermal protected mat have added adhesive on the fiber sheet material, which can be fully automated in production line when combined with release paper, greatly reducing labor costs and improving product yield.
Appearance | Flexible sheet material,customizable colors | |
Thickness | 1mm、2.0mm、3.0mm、5.0mm,Customizable | |
Width | Customizable | |
Thermal conductivity | ≤0.04(w/m·k) | GB/T 10297-2015 |
Bulk density | 100-160kg/m³ | GB/T 5480-2008 |
Hydrophobic | 99.50% | GB/T 10299-2011 |
Flame retardant grade | Satisfy | UL94-V0 |
Compressive strength | 0.9MPa@75% | GB/T 14380-2014 |
Compression resilience ratio | ≥85% | |
Vibration mass loss | 0% | GB/T 34336-2017 |
Tensile strength | ≥400kPa | GB/T 17911-2018 |
ELV | Meet limit requirements | EU ELV Directive 2000/53/EC |
Packaging method | Double sided adhesive packaging |
