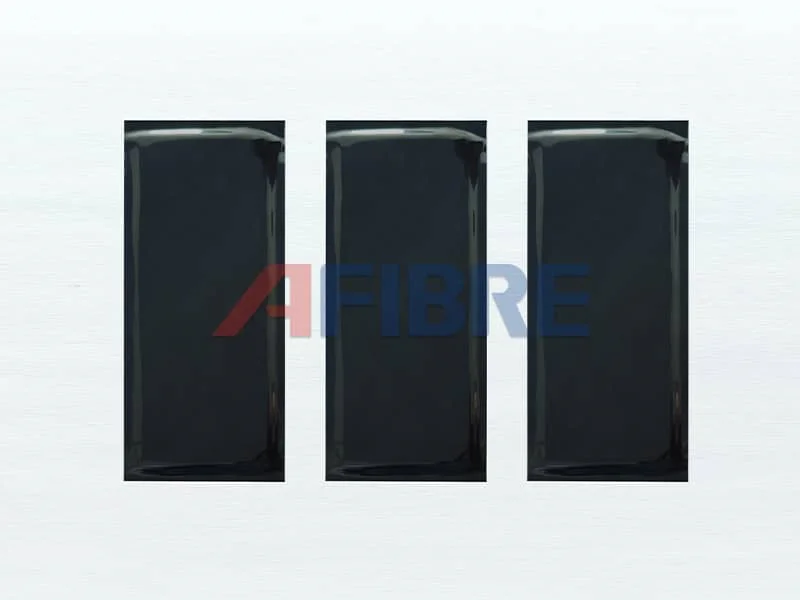

TPP-A2 alumina fiber thermal protected mat is an optimized packaging process based on TPP-A1, with an increased temperature range. The maximum temperature for external plastic sealing film can reach 300 ℃, and the long-term use temperature is 200 ℃.
| Appearance | Flexible sheet material,customizable colors | |
| Thickness | 1mm、1.5mm、3.0mm、5.0mm,Customizable | |
| Width | ≤1.20m,Customizable | |
| Thermal conductivity | ≤0.04(w/m·k) | GB/T 10297-2015 |
| Bulk density | 100-160kg/m³ | GB/T 5480-2008 |
| Hydrophobic | 99.50% | GB/T 10299-2011 |
| Flame retardant grade | Satisfy | UL94-V0 |
| Compressive strength | 0.9MPa@75% | GB/T 14380-2014 |
| Compression resilience ratio | ≥85% | GB/T 20671.2-2006 |
| Vibration mass loss | 0% | GB/T 34336-2017 |
| Tensile strength | ≥400kPa | GB/T 17911-2018 |
| ELV | Meet limit requirements | 欧盟ELV指令2000/53/EC |
| Packaging method | Plastic film packaging or customization | |
