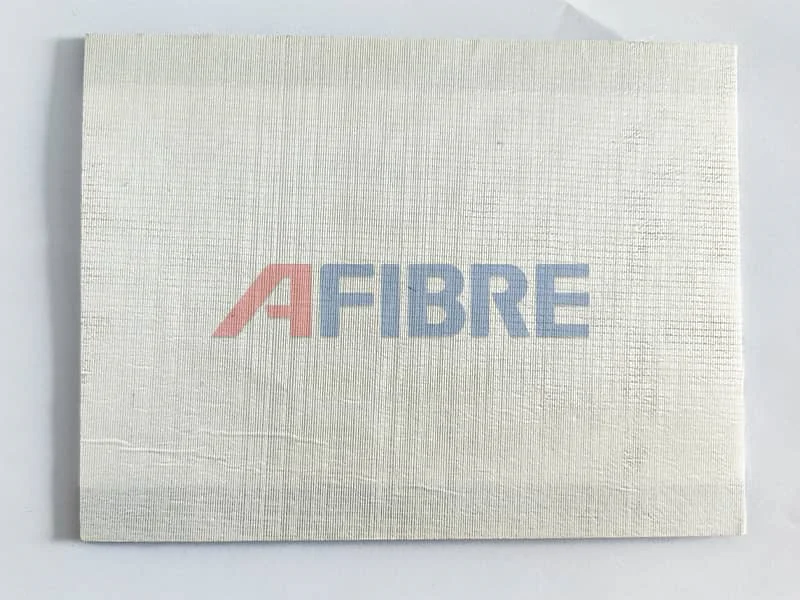

TPP-A4 alumina fiber thermal protected mat is a structural optimization based on TPP-A3, which reduces the production cost of the product while ensuring performance, and increases its resistance to heat flow and temperature resistance.
Appearance | Flexible sheet material,customizable colors | |
Thickness | 2.0mm、3.0mm、5.0mm,Customizable | |
Width | Customizable | |
Thermal conductivity | ≤0.04(w/m·k) | GB/T 10297-2015 |
Bulk density | 100-160kg/m³ | GB/T 5480-2008 |
Hydrophobic | 99.50% | GB/T 10299-2011 |
Flame retardant grade | Satisfy | UL94-V0 |
Compressive strength | 0.9MPa@25% | GB/T 14380-2014 |
Compression resilience ratio | ≥85% | GB/T 20671.2-2006 |
Vibration mass loss | 0% | GB/T 34336-2017 |
Tensile strength | ≥400kPa | GB/T 17911-2018 |
ELV | Meet limit requirements | EU ELV Directive 2000/53/EC |
Packaging method | Sheet mica packaging or customization |
